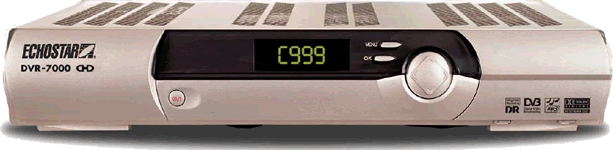

DVR-7000 HDD - TECHNICAL DATA





Feature Highlights

ImbeddedViaccess 1.1(option)
EchoNav Multilingual User Interface (12+ languages)
2 Common Interface Slots
Echostar AutoSat for Locating Satellites
40 Gbyte Low Noise Audio/Video Hard Disk Drive
6 Week EPG (electronic program guide)
Digital Audio/Video Recording With Slow Motion, Pause, FF., Rew.
Multiple Scan Modes (incl. Update Scan)
Pause Live TV (Time Shift)
Powerful Channel Sorting and Grouping
MP3-Player, 500 Songs
Manual PID-FEC, Symbol Rate editing
Dolby Digital audio
Software Upgrade via satellite Download
5700 Channels, 100 Satellites, 1300 Transponders.
RS-232 and USB Ports for Computer Interface
Integrated High Power Positioner (36 Volts, 5 Amp.)
Digital Audio Output (Dolby Digital Compatible AC-3)
8 Favorite Lists For Each Mode (TV, Radio, DVR, MP3)
Polarotor Ferotor or Pulse Motor
Audio/Video
700 channels
IF freq range 900-2150 MHz
MF-baesband 27 MHz
Low Threshold; ‹ 3dB, 32 steg
Audio
Video
Bandband 130-500 kHz
PAL, NTSC, Secam-PAL coverter
50µs, 75µs, J17
UHF-modulator channels 21-69 PAL B/G, I, D/K

Digital Receiver
5000 channels (4000 TV, 1000 radio)
IF Tunner range 920-2150 Mhz
LNB-:13/18V, 22kHz, DiSEqC 1.0
Polarotor Ferotor or Pulse Motor
0/12 V DC Output
Symbolrate 2-32 MSym/s SCPC/MCPC

MP3-decoder
Transport stream MPEG1/2 layer 2/3
via RCA or TV-Scart
